Chaves Estendidas

require 'openssl' # HMAC
require 'ecdsa'   # sudo gem install ecdsa

# ----
# Seed
# ----
seed = "67f93560761e20617de26e0cb84f7234aaf373ed2e66295c3d7397e6d7ebe882ea396d5d293808b0defd7edd2babd4c091ad942e6a9351e6d075a29d4df872af"
puts "seed: #{seed}"
puts

# --------------------

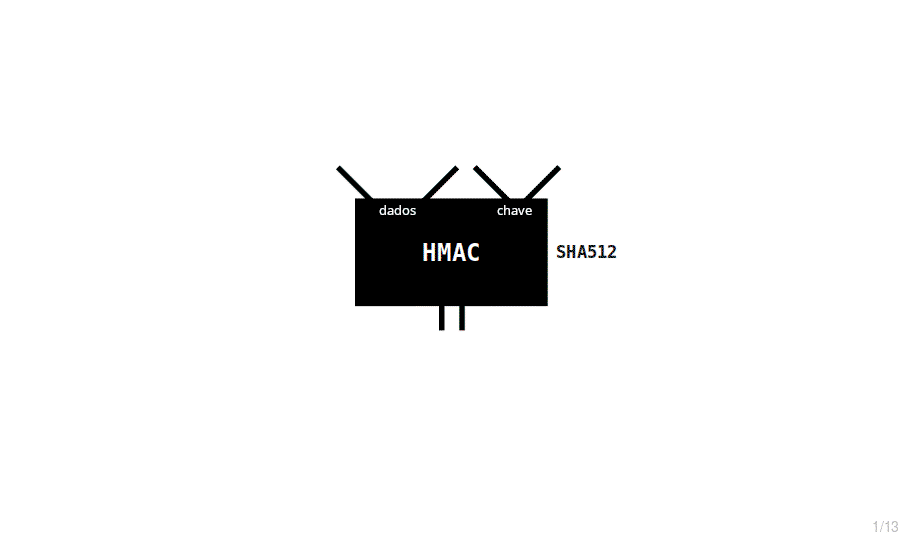

# Generate Master Keys
# --------------------
# seed
# |
# m

# HMAC
hmac = OpenSSL::HMAC.hexdigest(OpenSSL::Digest::SHA512.new, "Bitcoin seed", [seed].pack("H*")) # digest, key, data
master_private_key = hmac[0..63] # left side of digest
master_chain_code = hmac[64..-1] # right side of digest

# > The SHA512-HMAC function is reused because it is already part of the standard elsewhere, but it takes a key in addition to the data being hashed.
# As the key can be arbitrary, we opted to use to make sure the key derivation was Bitcoin-specific. -- Pieter Wuille

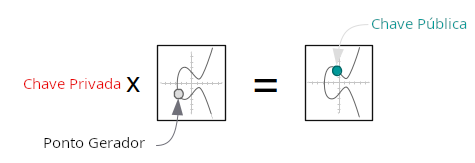

# Get Public Key (multiply generator point by private key)
master_public_key = ECDSA::Group::Secp256k1.generator.multiply_by_scalar(master_private_key.to_i(16)) # multiply generator point by private key
master_public_key = ECDSA::Format::PointOctetString.encode(master_public_key, compression: true).unpack("H*")[0] # encode to compressed public key format

puts "master_chain_code:  #{master_chain_code}"  #=> 463223aac10fb13f291a1bc76bc26003d98da661cb76df61e750c139826dea8b
puts "master_private_key: #{master_private_key}" #=> f79bb0d317b310b261a55a8ab393b4c8a1aba6fa4d08aef379caba502d5d67f9
puts "master_public_key:  #{master_public_key}"  #=> 0252c616d91a2488c1fd1f0f172e98f7d1f6e51f8f389b2f8d632a8b490d5f6da9

require 'openssl' # HMAC
require 'ecdsa'   # sudo gem install ecdsa

# ---------------------------------

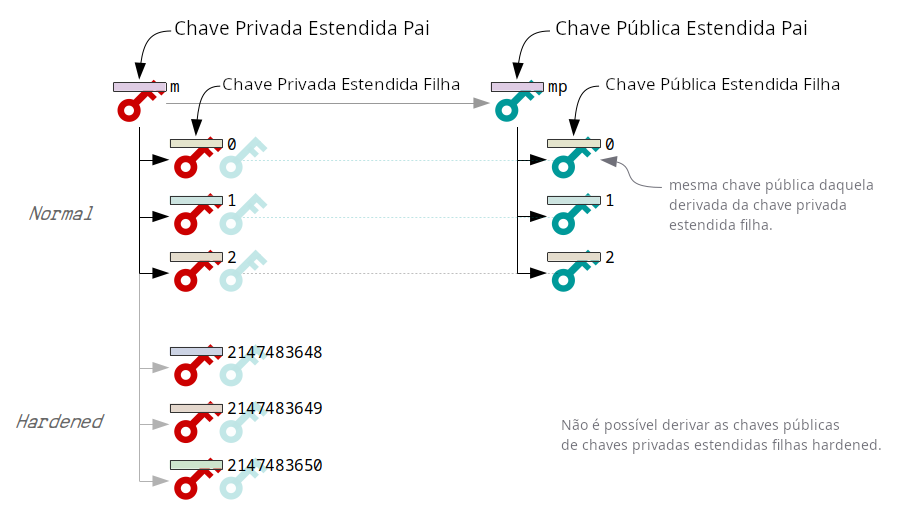

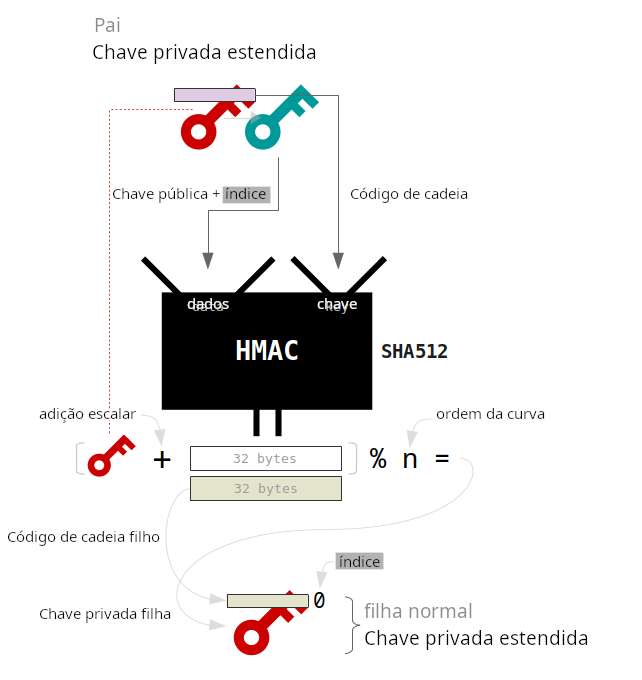

# Normal Child Extended Private Key
# ---------------------------------
# m
# |- m/0
# |- m/1
# |- m/2
# ...

parent_chain_code  = "463223aac10fb13f291a1bc76bc26003d98da661cb76df61e750c139826dea8b"
parent_private_key = "f79bb0d317b310b261a55a8ab393b4c8a1aba6fa4d08aef379caba502d5d67f9"
parent_public_key  = "0252c616d91a2488c1fd1f0f172e98f7d1f6e51f8f389b2f8d632a8b490d5f6da9"
i = 0 # child index number

# Prepare data and key to put through HMAC function
data = [parent_public_key].pack("H*") + [i].pack("N") # public key + index
key = [parent_chain_code].pack("H*") # chain code is key for hmac

hmac = OpenSSL::HMAC.hexdigest(OpenSSL::Digest::SHA512.new, key, data) # digest, key, data
il = hmac[0..63]  # left side of intermediate key [32 bytes]
ir = hmac[64..-1] # right side of intermediate key [32 bytes]

# Chain code is last 32 bytes
child_chain_code = ir

# Check the chain code is valid.
if child_chain_code.to_i(16) >= ECDSA::Group::Secp256k1.order
    raise "Chain code is greater than the order of the curve. Try the next index."
end

# Calculate child private key
child_private_key = (il.to_i(16) + parent_private_key.to_i(16)) % ECDSA::Group::Secp256k1.order # (il + parent_key) % n
child_private_key = child_private_key.to_s(16).rjust(64, '0') # convert to hex (and make sure it's 32 bytes long)

# Work out the corresponding public key too (optional)
child_public_key = ECDSA::Group::Secp256k1.generator.multiply_by_scalar(child_private_key.to_i(16)) # work out the public key for this too
child_public_key = ECDSA::Format::PointOctetString.encode(child_public_key, compression: true).unpack("H*")[0] # encode to compressed public key format

# Results
puts "child_chain_code:   #{child_chain_code}"  #=> 05aae71d7c080474efaab01fa79e96f4c6cfe243237780b0df4bc36106228e31
puts "child_private_key:  #{child_private_key}" #=> 39f329fedba2a68e2a804fcd9aeea4104ace9080212a52ce8b52c1fb89850c72
puts "child_public_key:   #{child_public_key}"  #=> 030204d3503024160e8303c0042930ea92a9d671de9aa139c1867353f6b6664e59

require 'openssl' # HMAC
require 'ecdsa'   # sudo gem install ecdsa

# -----------------------------------

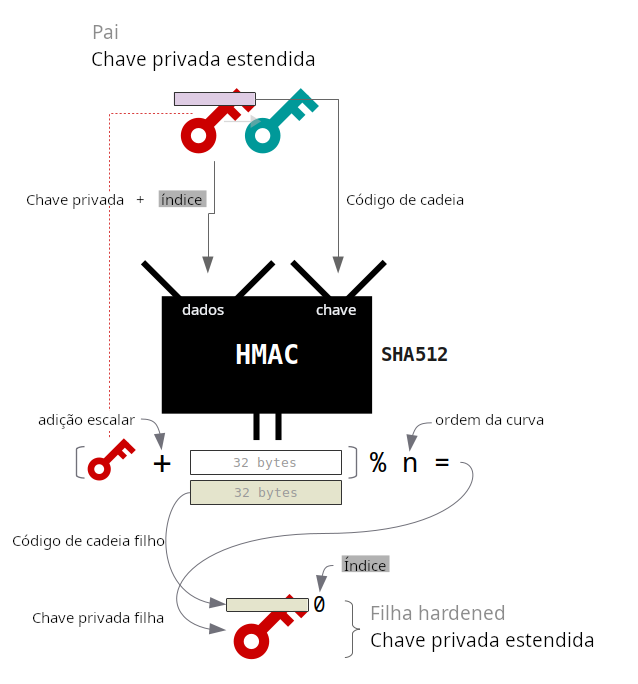

# Hardened Child Extended Private Key
# -----------------------------------
# m
# ...
# |- m/2147483648
# |- m/2147483649
# |- m/2147483650
# ...

parent_chain_code  = "463223aac10fb13f291a1bc76bc26003d98da661cb76df61e750c139826dea8b"
parent_private_key = "f79bb0d317b310b261a55a8ab393b4c8a1aba6fa4d08aef379caba502d5d67f9"
i = 2147483648 # child index number (must between 2**31 and 2**32-1)

# Prepare data and key to put through HMAC function
data = ["00"].pack("H*") + [parent_private_key].pack("H*") + [i].pack("N")  # 0x00 + private_key + index
key = [parent_chain_code].pack("H*") # chain code is key for hmac

hmac = OpenSSL::HMAC.hexdigest(OpenSSL::Digest::SHA512.new, key, data) # digest, key, data
il = hmac[0..63]  # left side of intermediate key [32 bytes]
ir = hmac[64..-1] # right side of intermediate key [32 bytes]

# Chain code is last 32 bytes
child_chain_code = ir

# Check the chain code is valid.
if child_chain_code.to_i(16) >= ECDSA::Group::Secp256k1.order
    raise "Chain code is greater than the order of the curve. Try the next index."
end

# Calculate child private key
child_private_key = (il.to_i(16) + parent_private_key.to_i(16)) % ECDSA::Group::Secp256k1.order # (il + parent_key) % n
child_private_key = child_private_key.to_s(16).rjust(64, '0') # convert to hex (and make sure it's 32 bytes long)

# Work out the corresponding public key too (optional)
child_public_key = ECDSA::Group::Secp256k1.generator.multiply_by_scalar(child_private_key.to_i(16)) # work out the public key for this too
child_public_key = ECDSA::Format::PointOctetString.encode(child_public_key, compression: true).unpack("H*")[0] # encode to compressed public key format

puts "child_chain_code:   #{child_chain_code}"  #=> cb3c17166cc30eb7fdd11993fb7307531372e565cd7c7136cbfa4655622bc2be
puts "child_private_key:  #{child_private_key}" #=> 7272904512add56fef94c7b4cfc62bedd0632afbad680f2eb404e95f2d84cbfa
puts "child_public_key:   #{child_public_key}"  #=> 0355cff4a963ce259b08be9a864564caca210eb4eb35fcb75712e4bba7550efd95

require 'openssl' # HMAC
require 'ecdsa' # sudo gem install ecdsa

# --------------------------------

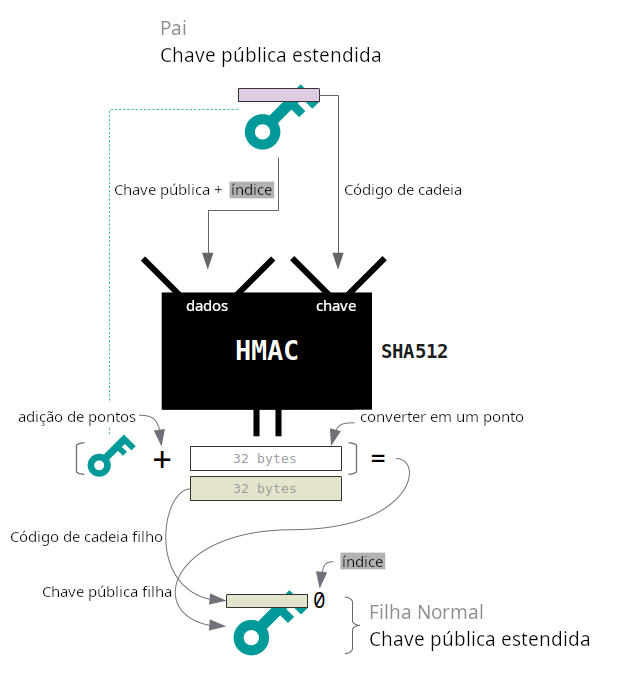

# Normal Child Extended Public Key
# --------------------------------
# m -------- p
#            |- p/0
#            |- p/1
#            |- p/3

parent_chain_code = "463223aac10fb13f291a1bc76bc26003d98da661cb76df61e750c139826dea8b"
parent_public_key = "0252c616d91a2488c1fd1f0f172e98f7d1f6e51f8f389b2f8d632a8b490d5f6da9"
i = 0 # child index number

if i >= 2**31
    raise "Can't create hardened child public keys from parent public keys."
end

# Prepare data and key to put through HMAC function
key = [parent_chain_code].pack("H*")
data = [parent_public_key].pack("H*") + [i].pack("N") # 32-bit unsigned, network (big-endian) byte order

hmac = OpenSSL::HMAC.hexdigest(OpenSSL::Digest::SHA512.new, key, data)
il = hmac[0..63]  # left side of intermediate key [32 bytes]
ir = hmac[64..-1] # right side of intermediate key [32 bytes]

# Chain code is last 32 bytes
child_chain_code = hmac[64..-1]

if il.to_i(16) >= ECDSA::Group::Secp256k1.order
    raise "Result of digest is greater than the order of the curve. Try the next index."
end

# Work out the child public key
point_hmac   = ECDSA::Group::Secp256k1.generator.multiply_by_scalar(il.to_i(16))                               # convert hmac il to a point
point_public = ECDSA::Format::PointOctetString.decode([parent_public_key].pack("H*"), ECDSA::Group::Secp256k1) # convert parent_public_key to a point
point = point_hmac.add_to_point(point_public)                                                                  # point addition

if (point == ECDSA::Group::Secp256k1.infinity)
    raise "Child public key point is at point of infinity. Try the next index."
end

child_public_key = ECDSA::Format::PointOctetString.encode(point, compression: true).unpack("H*")[0] # encode to compress public key

puts "child_chain_code:   #{child_chain_code}"
puts "child_public_key:   #{child_public_key}"

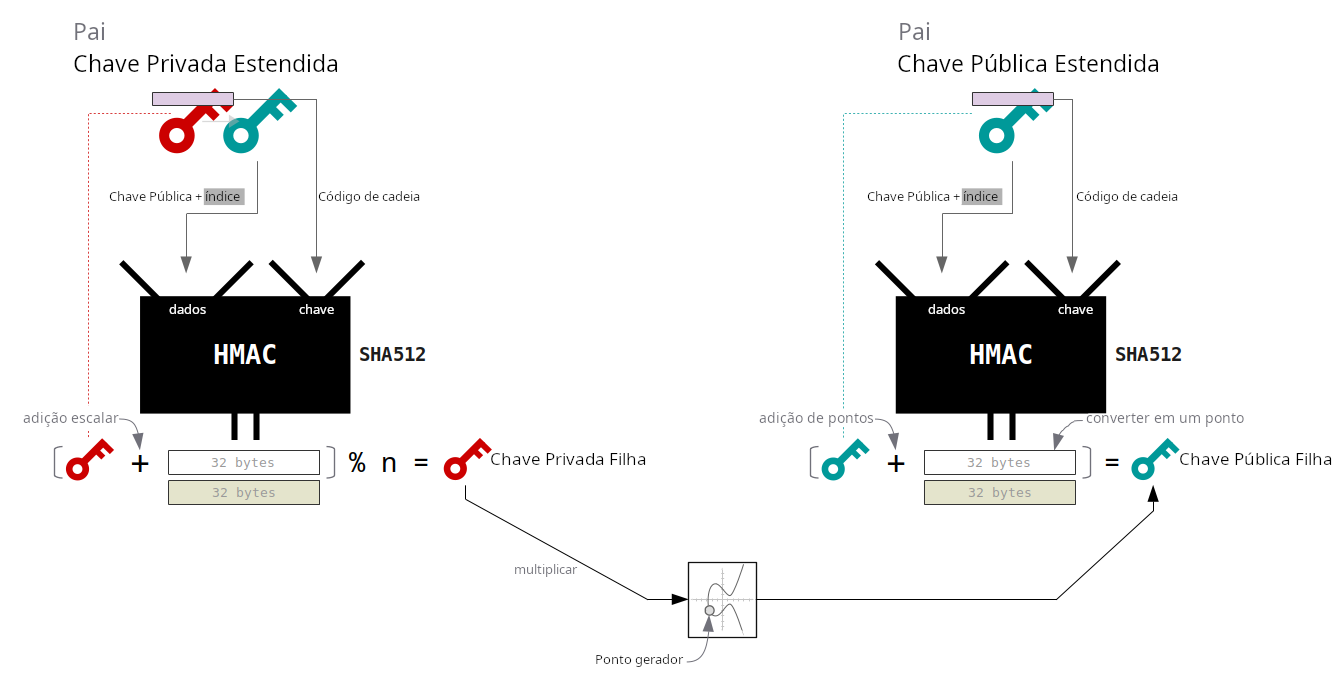

require 'ecdsa'   # ECDSA Math (sudo gem install ecdsa)

# Original Private Key and Public Key
private_key = 12345
public_key  = ECDSA::Group::Secp256k1.generator.multiply_by_scalar(private_key)
number = rand(1000000) # used to modify the private key and public key independently

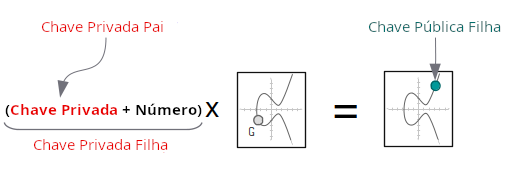

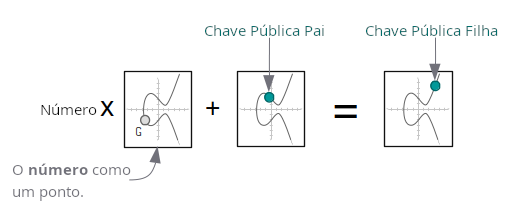

# Child Public Key 1: (Private Key + Number) * Generator
private_and_number = private_key + number
child_public_key1  = ECDSA::Group::Secp256k1.generator.multiply_by_scalar(private_and_number)

# Child Public Key 2: Public Key + (Number * Generator)
number_point       = ECDSA::Group::Secp256k1.generator.multiply_by_scalar(number)
child_public_key2  = public_key.add_to_point(number_point)

# Results
puts ECDSA::Format::PointOctetString.encode(child_public_key1, compression: true).unpack("H*") #=> e.g. 022861a4809b2d8eb9269abea605f47db91deb9f5385bcc10b94aac6a0b81cba3d
puts ECDSA::Format::PointOctetString.encode(child_public_key2, compression: true).unpack("H*") #=> e.g. 022861a4809b2d8eb9269abea605f47db91deb9f5385bcc10b94aac6a0b81cba3d
puts child_public_key1 == child_public_key2 #=> true

# -----
# Utils - Needed for creating the fingerprint and checksum, and converting hex string to Base58
# -----
require 'digest'

def create_fingerprint(parent_public_key)
    hash160 = Digest::RMD160.digest(Digest::SHA256.digest([parent_public_key].pack("H*"))) # hash160 it
    fingerprint = hash160[0...4].unpack("H*").join # take first 4 bytes (and convert to hex)
    return fingerprint
end

def hash256(hex)
    binary = [hex].pack("H*")
    hash1 = Digest::SHA256.digest(binary)
    hash2 = Digest::SHA256.digest(hash1)
    result = hash2.unpack("H*")[0]
    return result
end

def checksum(hex)
    hash = hash256(hex) # Hash the data through SHA256 twice
    return hash[0...8]  # Return the first 4 bytes (8 characters)
end

def base58_encode(hex)
    chars = %w[
      1 2 3 4 5 6 7 8 9
    A B C D E F G H   J K L M N   P Q R S T U V W X Y Z
    a b c d e f g h i j k   m n o p q r s t u v w x y z
    ]
    base = chars.length

    i = hex.to_i(16)
    buffer = String.new

    while i > 0
        remainder = i % base
        i = i / base
        buffer = chars[remainder] + buffer
    end

    # add '1's to the start based on number of leading bytes of zeros
    leading_zero_bytes = (hex.match(/^([0]+)/) ? $1 : '').size / 2

    ("1"*leading_zero_bytes) + buffer
end

# --------------------------

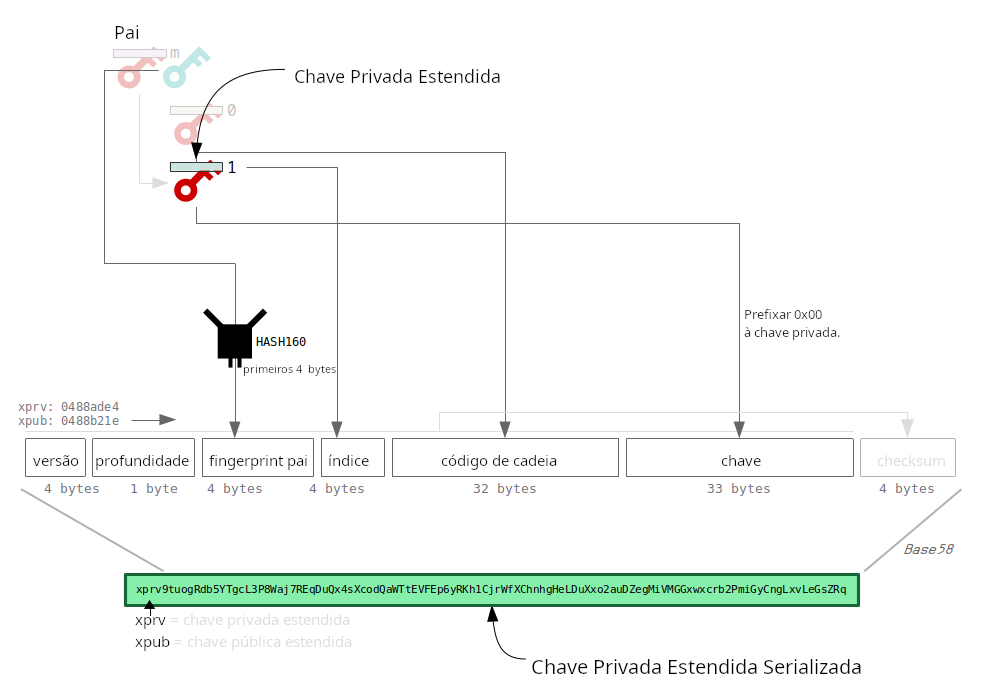

# Extended Key Serialization
# --------------------------
parent_public_key = "0252c616d91a2488c1fd1f0f172e98f7d1f6e51f8f389b2f8d632a8b490d5f6da9" # needed to create fingerprint

chain_code  = "05aae71d7c080474efaab01fa79e96f4c6cfe243237780b0df4bc36106228e31" # m/0
private_key = "39f329fedba2a68e2a804fcd9aeea4104ace9080212a52ce8b52c1fb89850c72" # m/0

# version + depth + fingerprint + childnumber + chain_code + key + (checksum)
#
# version:     puts xprv or xpub at the start
# depth:       how many times this child has been derived from master key (0 = master key)
# fingerprint: created from parent public key (allows you to spot adjacent xprv and xpubs)
# childnumber: the index of this child key from the parent
# chain_code:  the current chain code being used for this key
# key:         the private or public key you want to create a serialized extended key for (prepend 0x00 for private)

version     = "0488ade4" # private = 0x0488ade4 (xprv), public = 0x0488b21e (xpub)
depth       = "01"
fingerprint = create_fingerprint(parent_public_key) #=> "018c1259"
childnumber = "00000000"
chain_code  = chain_code
key         = "00" + private_key  # prepend 00 to private keys (to make them 33 bytes, the same as public keys)

serialized = version + depth + fingerprint + childnumber + chain_code + key
extended_private_key = base58_encode(serialized + checksum(serialized))

puts "extended_private_key: #{extended_private_key}" #=> xprv9tuogRdb5YTgcL3P8Waj7REqDuQx4sXcodQaWTtEVFEp6yRKh1CjrWfXChnhgHeLDuXxo2auDZegMiVMGGxwxcrb2PmiGyCngLxvLeGsZRq
